50 ohm to 200 ohm RF transformer OH7SV

50 ohm to 200 ohm RF transformer measurements 06.09.2004 OH7SV
These HF wide band transformers are designed and tested for low power (1W) mosfet power amplifier input and output circuits.
The used core is Ferroxcube MHB2-13/8/8-4B1 dual hole ferrite, u=250, AL=0.5uH/turn.

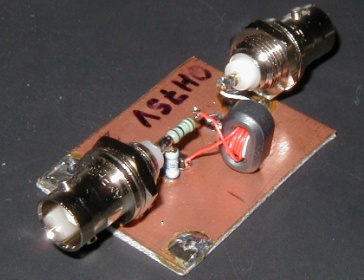

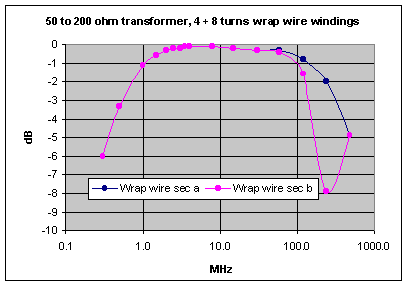

Simple wire wrap transformer. Primary 4 and secondary 8 turns	Blue initial secondary connection, pink secondary polarity changed

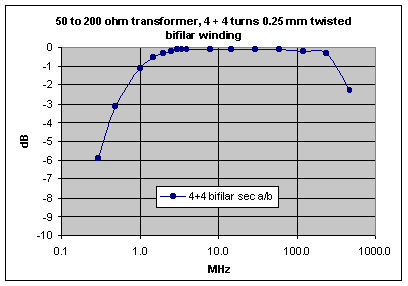

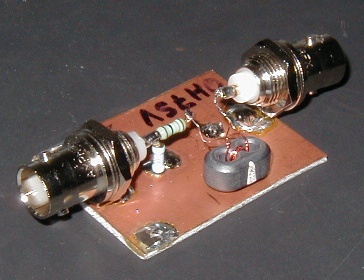

Bifilar 4+4 turns twisted pair 0.25mm enamelled cu wire	Primary and secondary polarities not possible to change

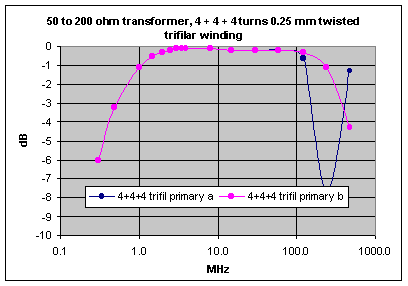

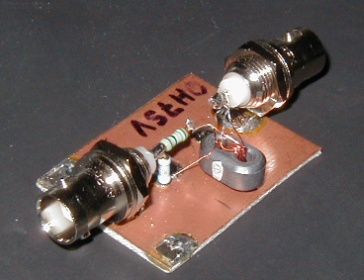

Trifilar 4+4+4 turns twisted 0.25mm enamelled cu wire	Blue initial primary connection, pink primary polarity changed
