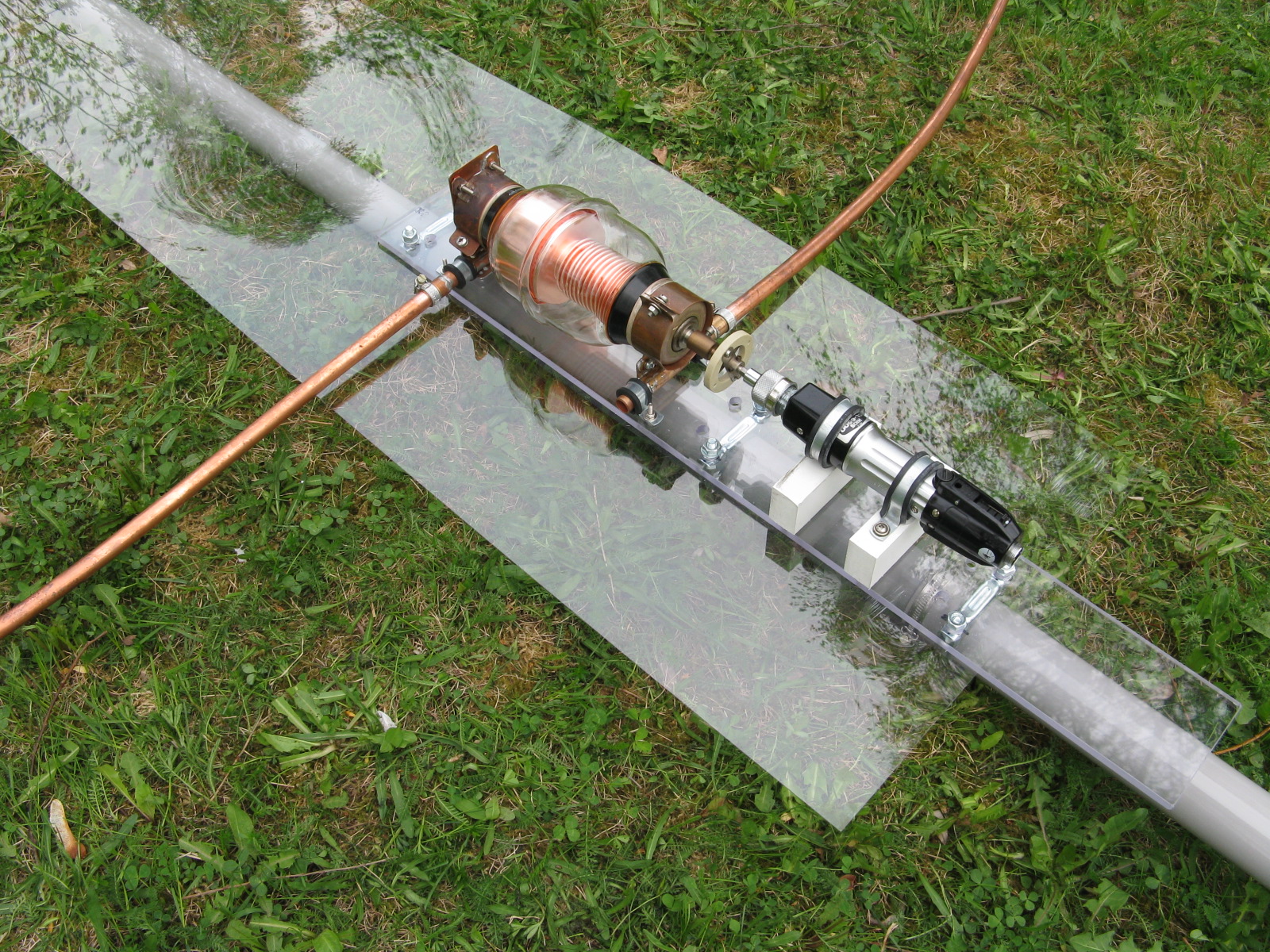

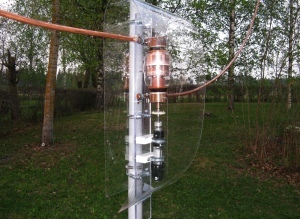

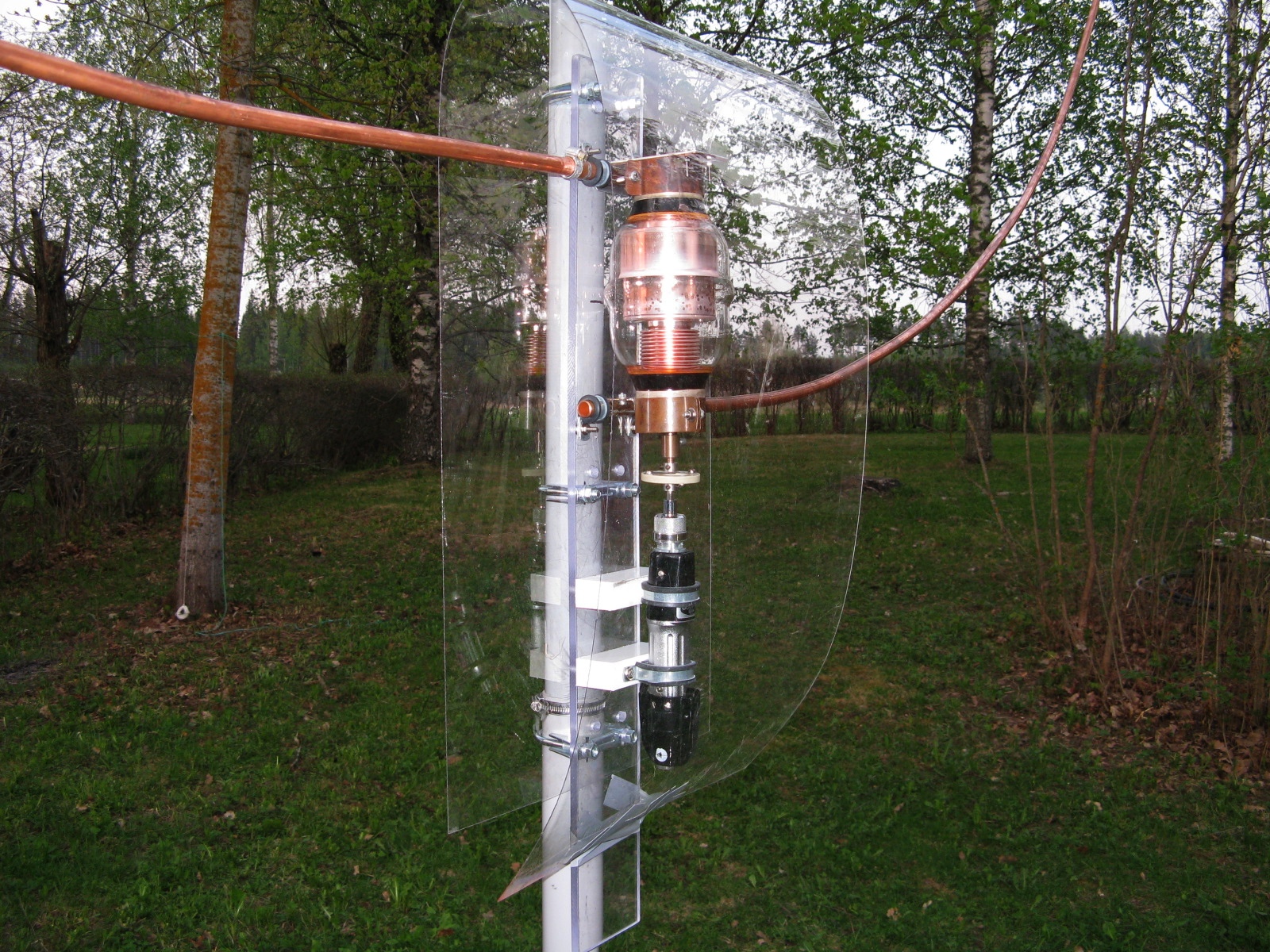

Vacuum capacitor 500pF/10kV and tuning motor
|

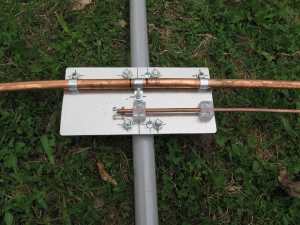

Feeding point and gamma match spacing 50mm
|

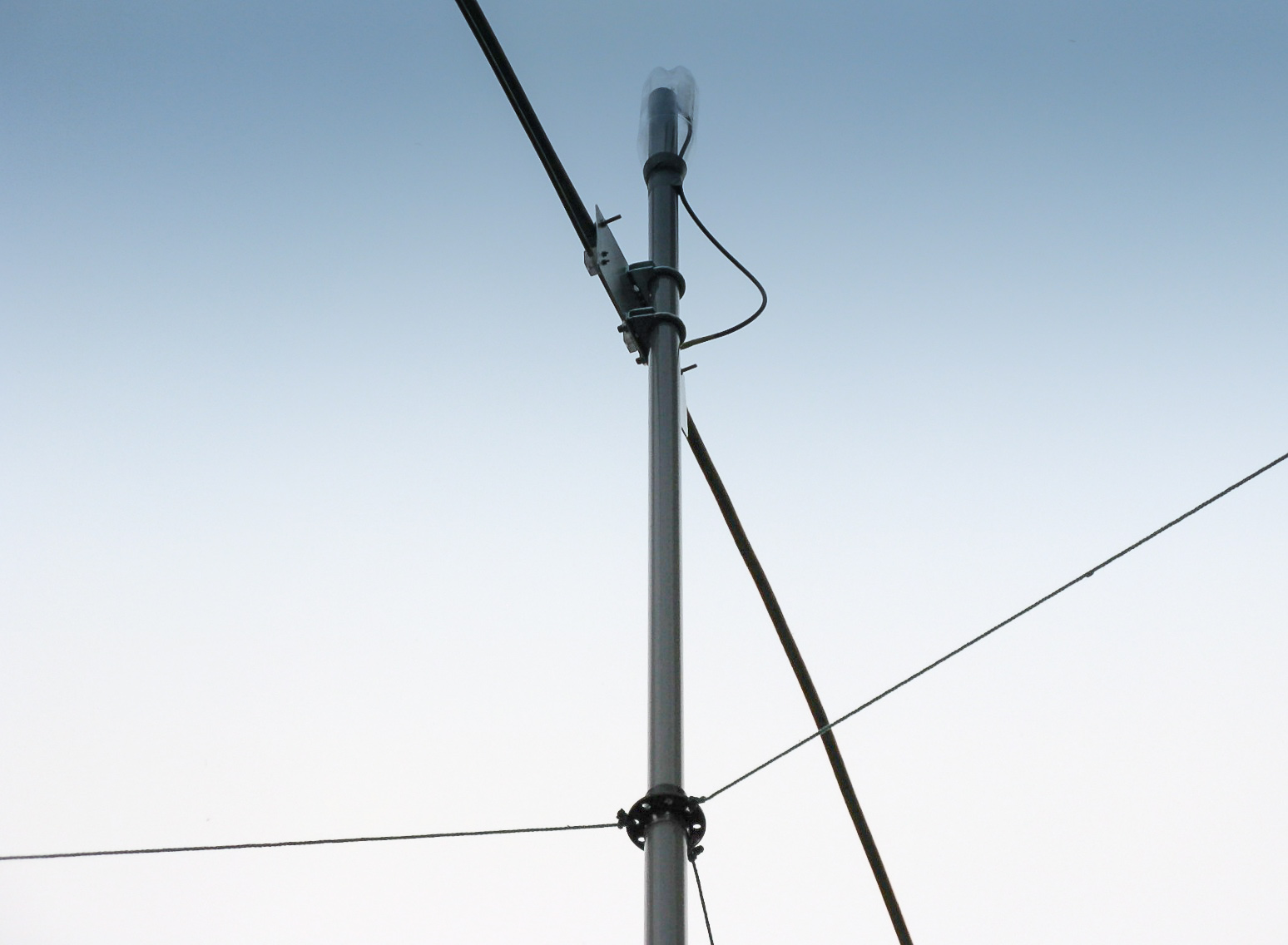

Coax thru mast and plastic bottle as top rain cover
|
Horizontal 30mm Excel System
fiberglass support
|

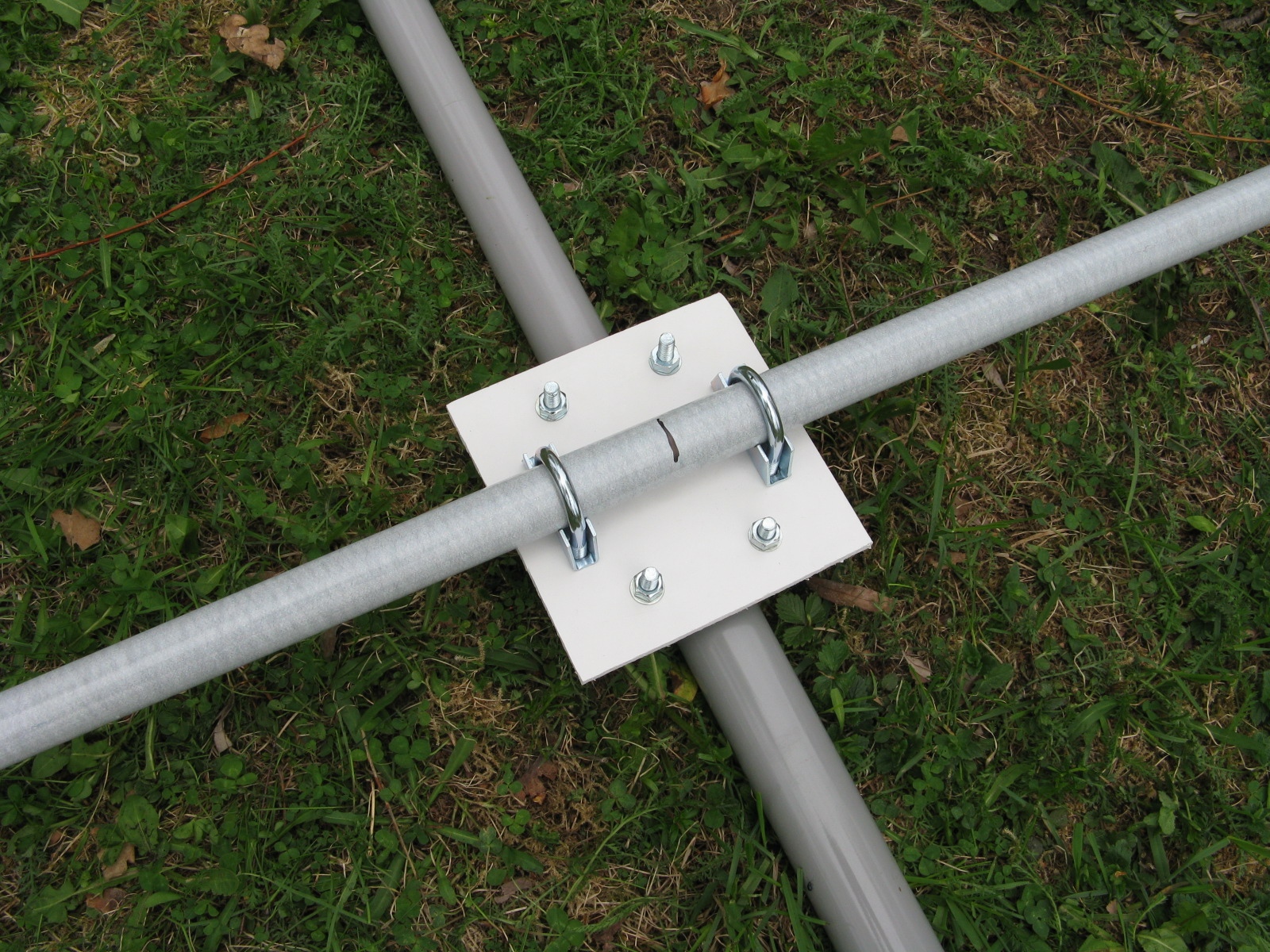

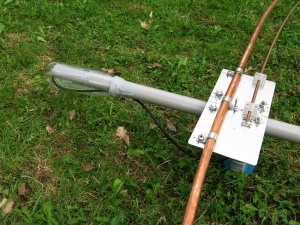

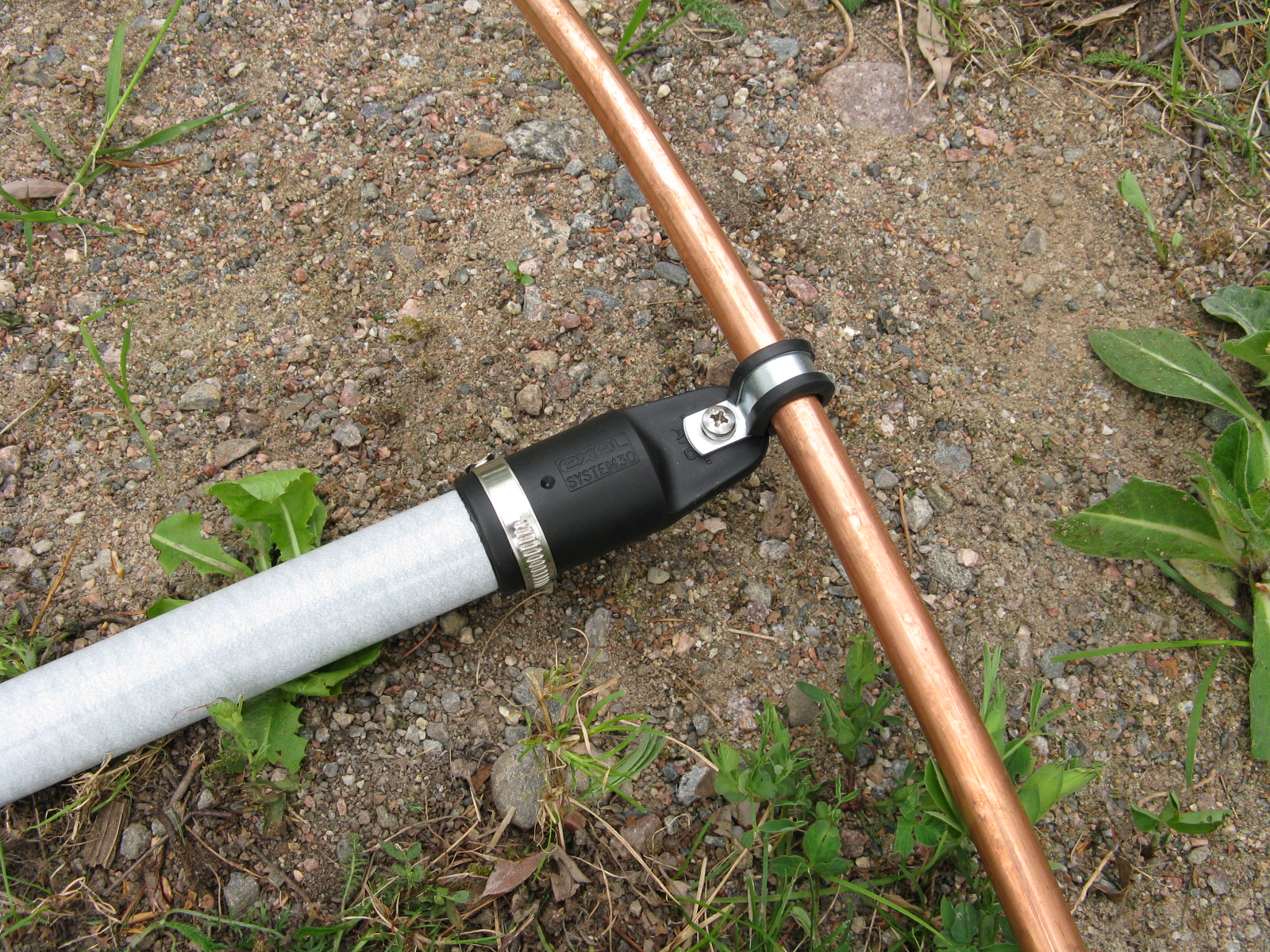

Horizontal support end fixing to copper tube
|

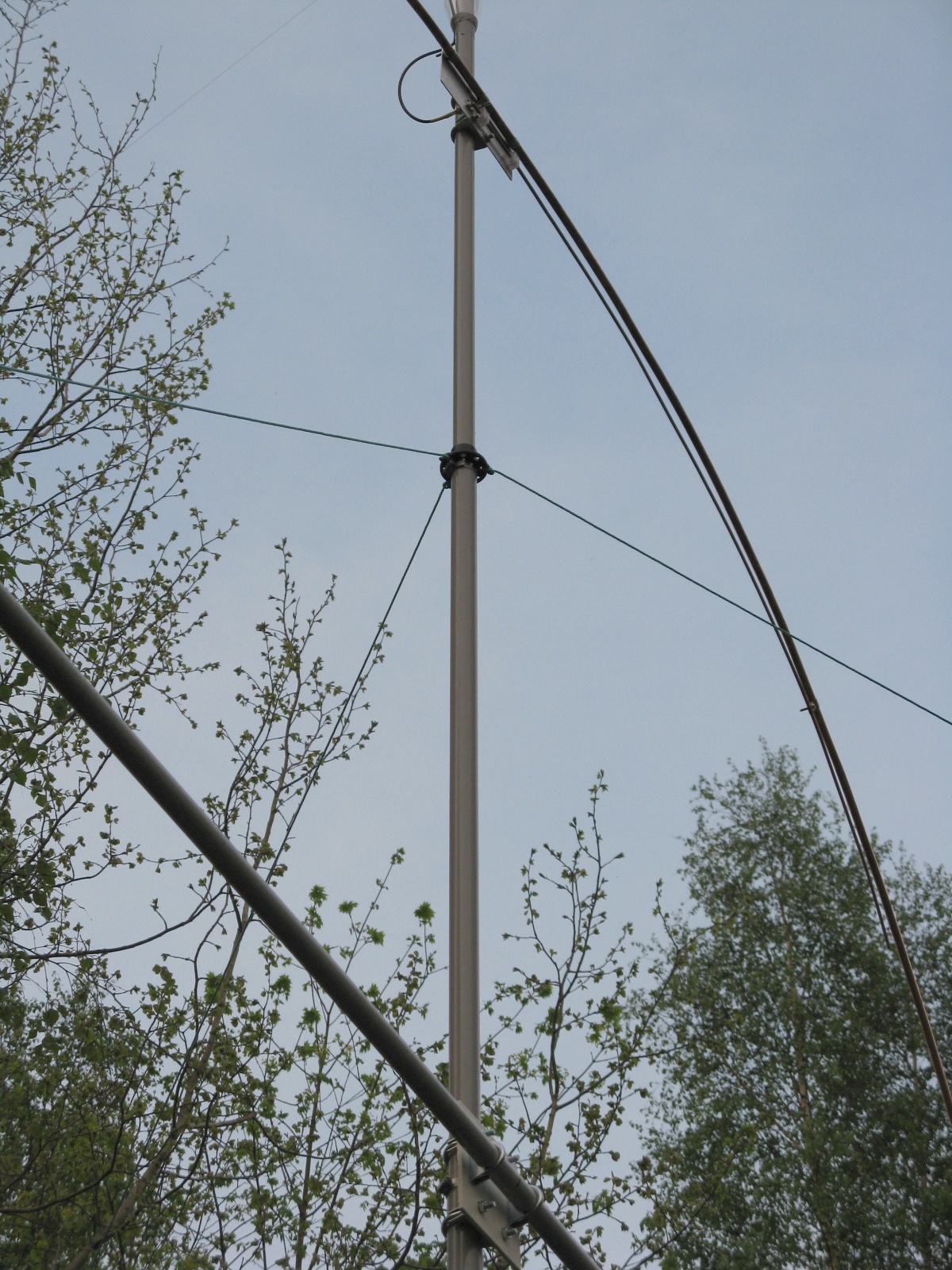

HD Fiberglass mast from DX-wire. Three guy ropes
|

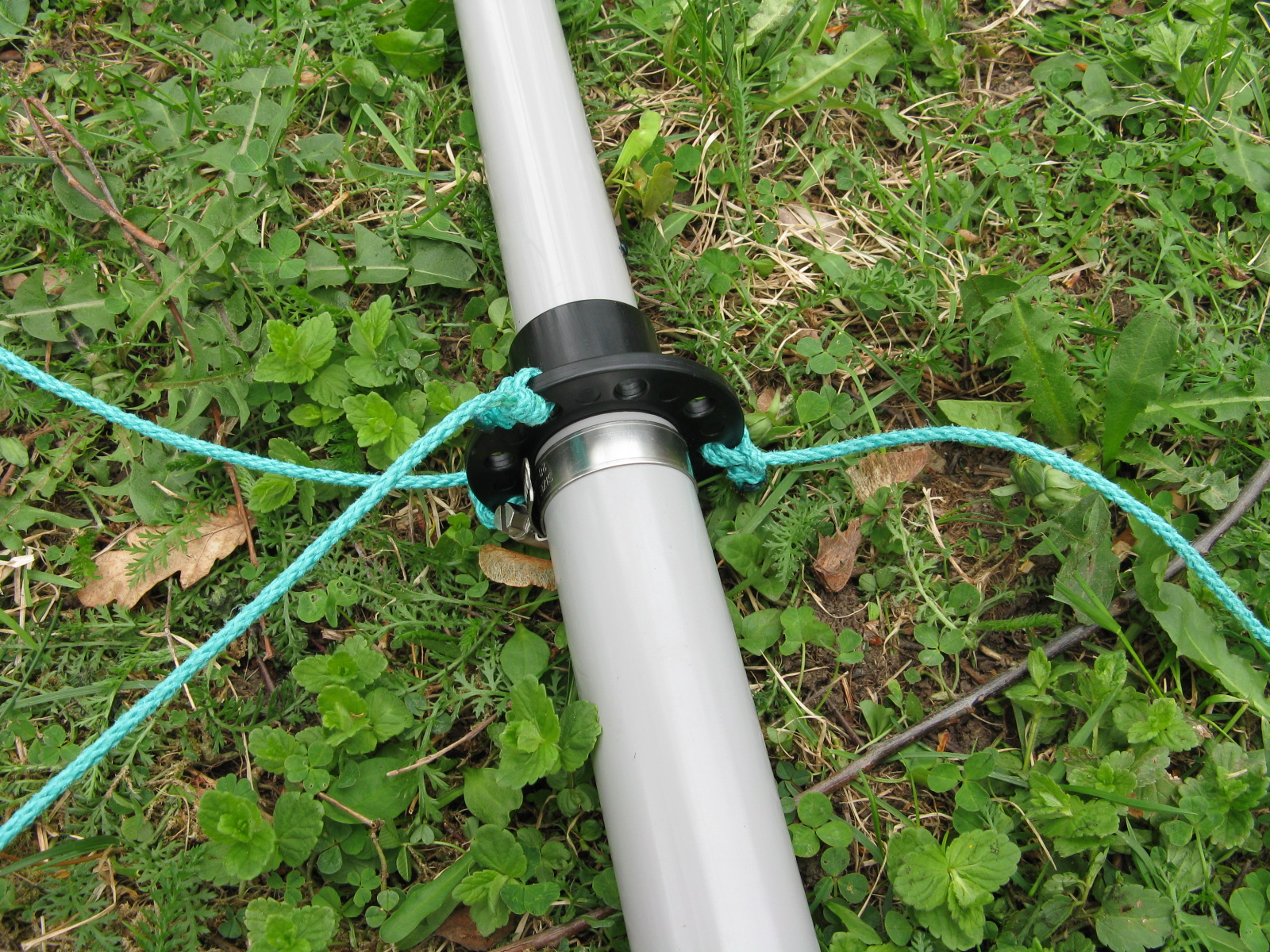

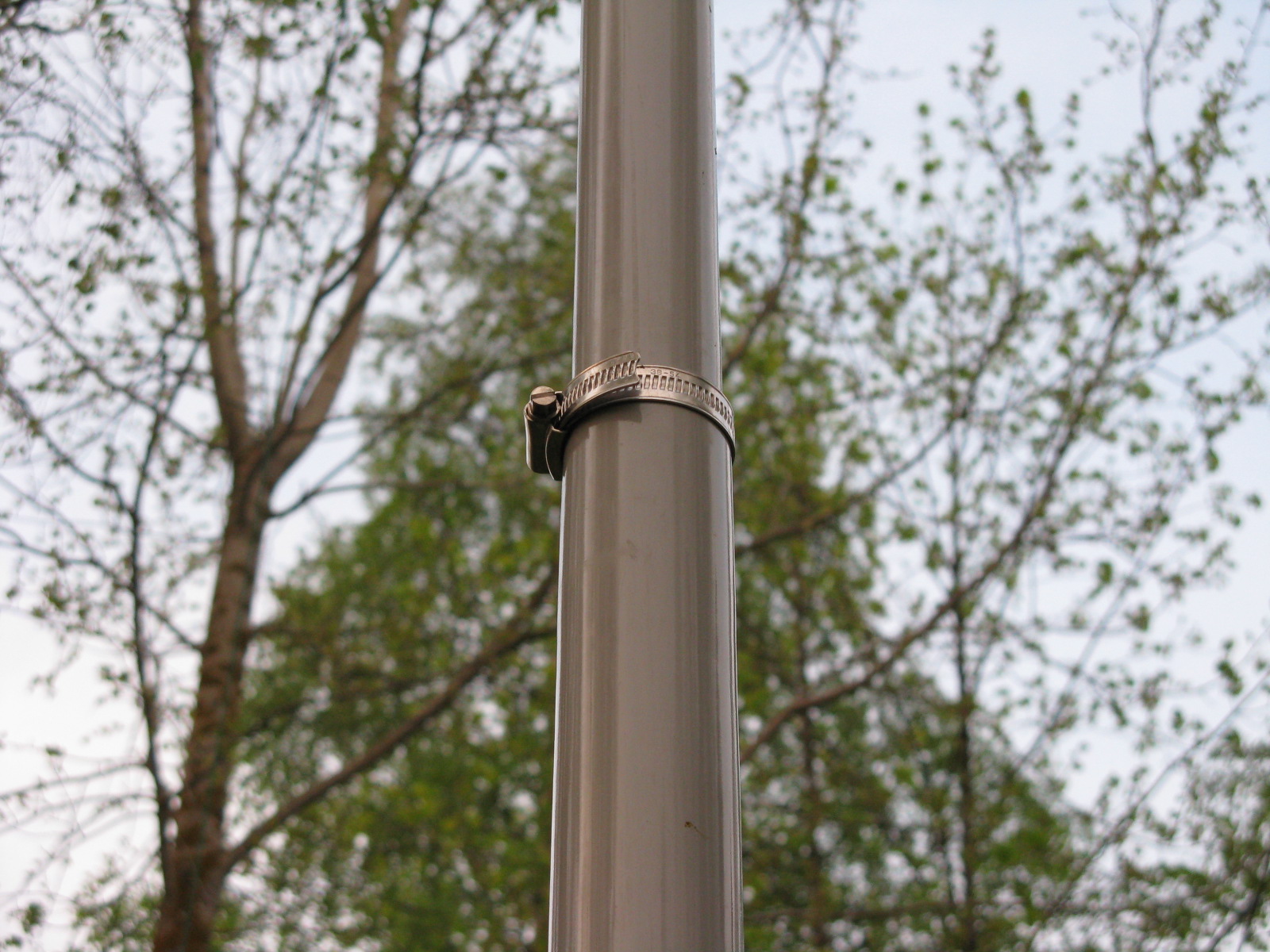

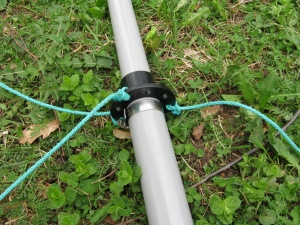

Telescope traction with stainless steel clamps
|

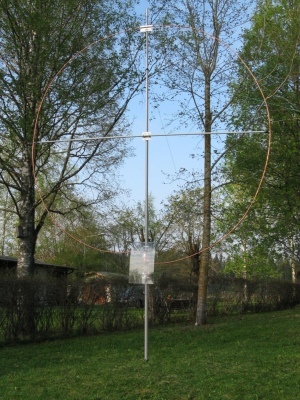

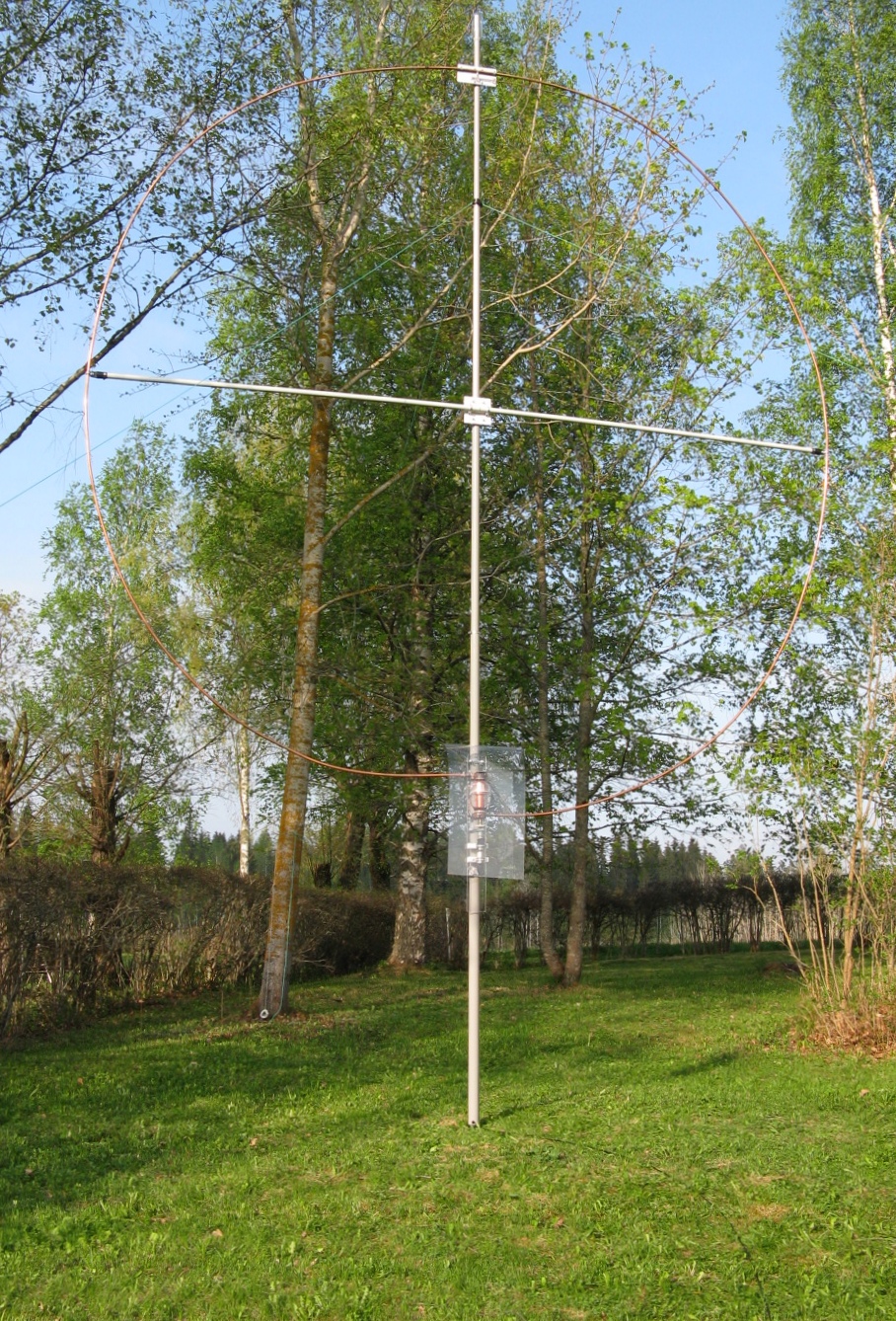

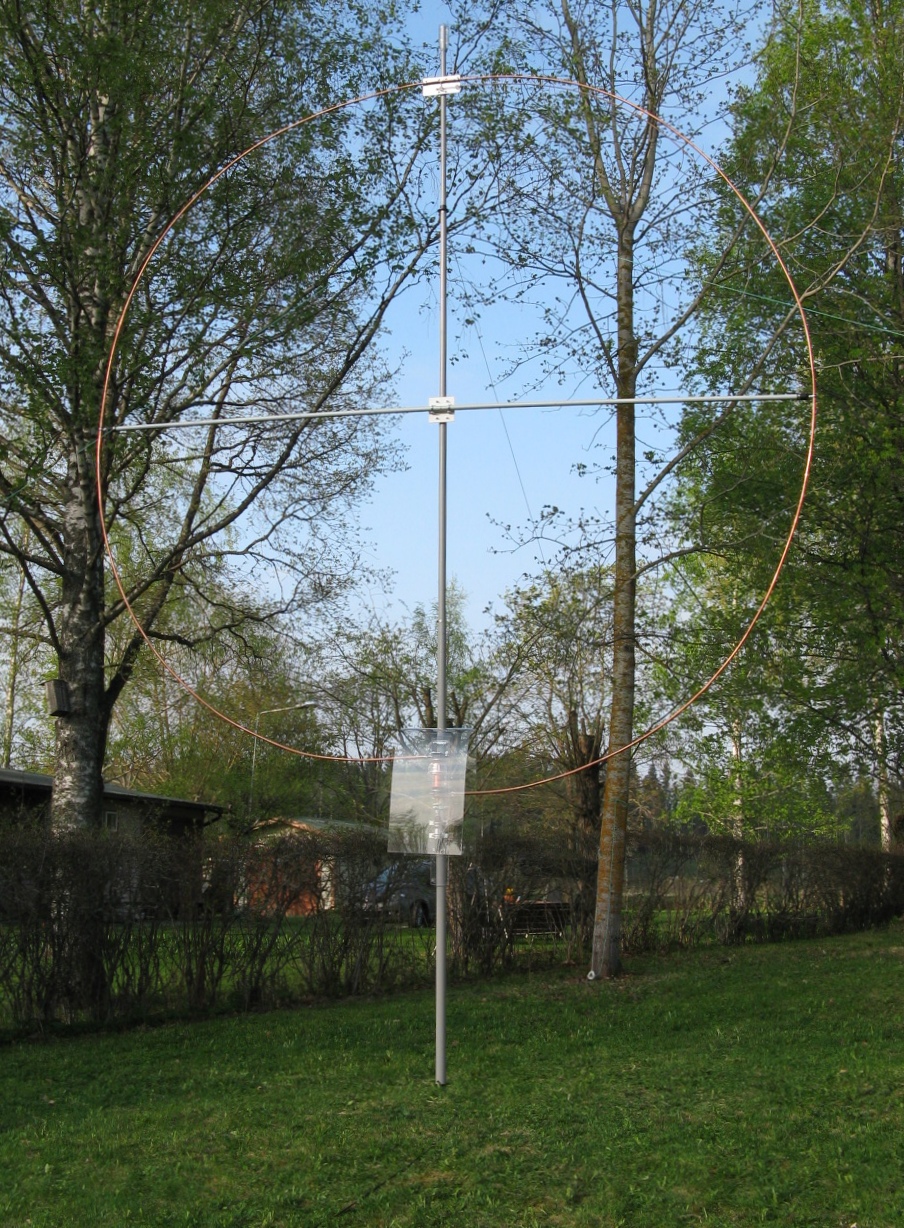

Magnetic loop ready for erect
|

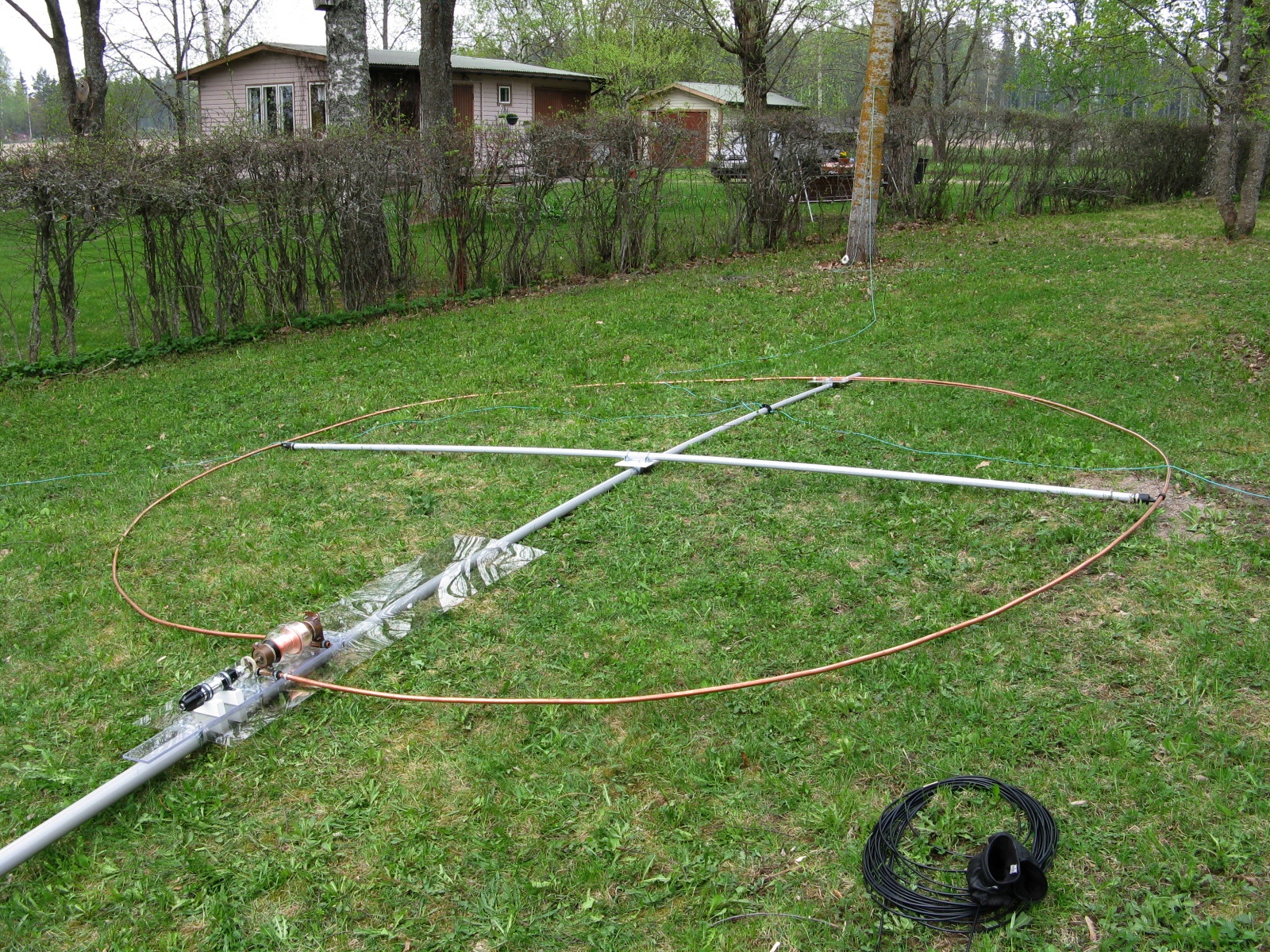

Loop length 13.2m, diameter 4.2m. Copper D=15mm
|
Telescopic HD fiberglass mast height 6m
|
Common
mode RF choke in DC motor cable
|

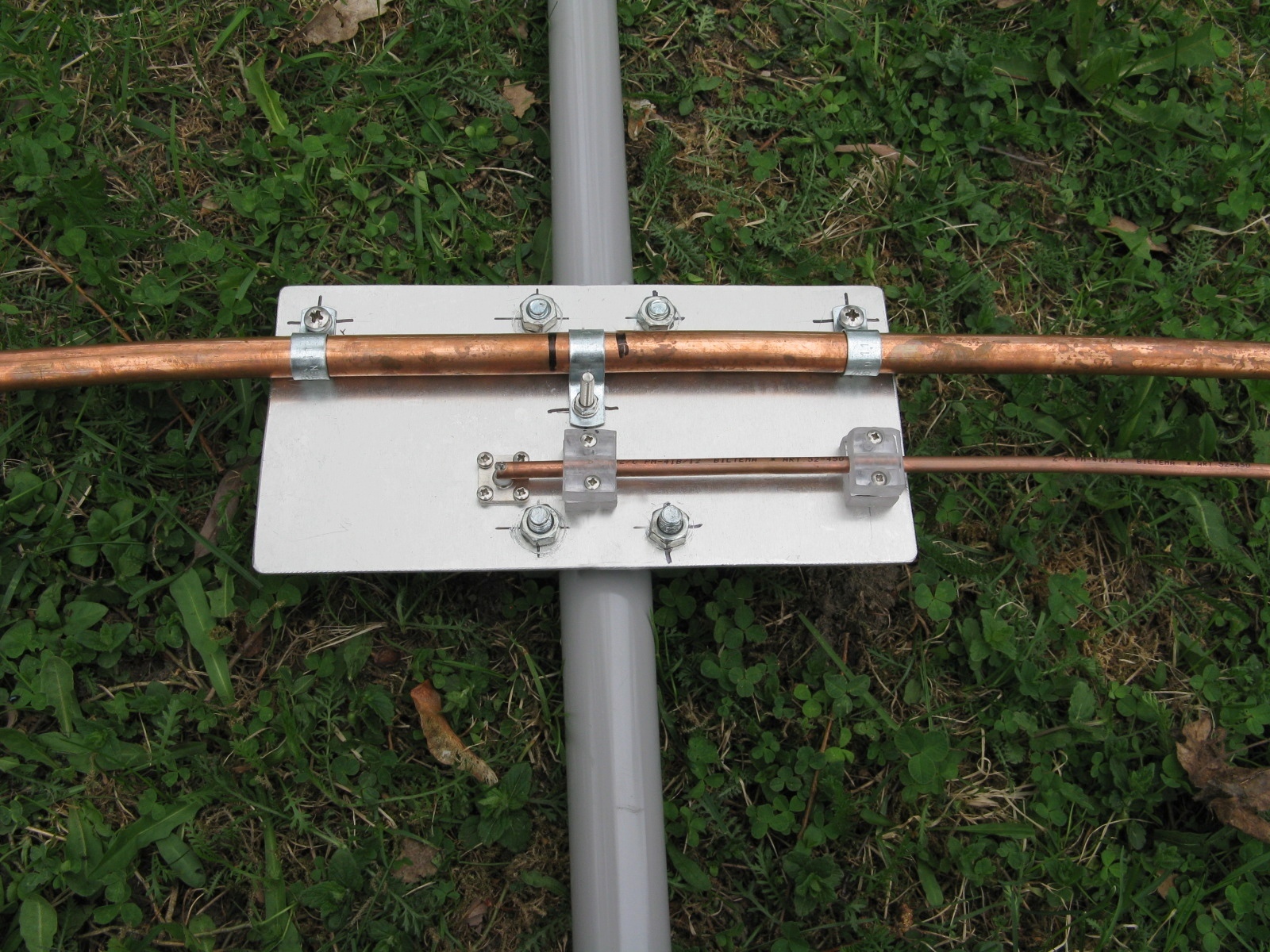

Gamma match length abt 1m, Copper D=6mm
|

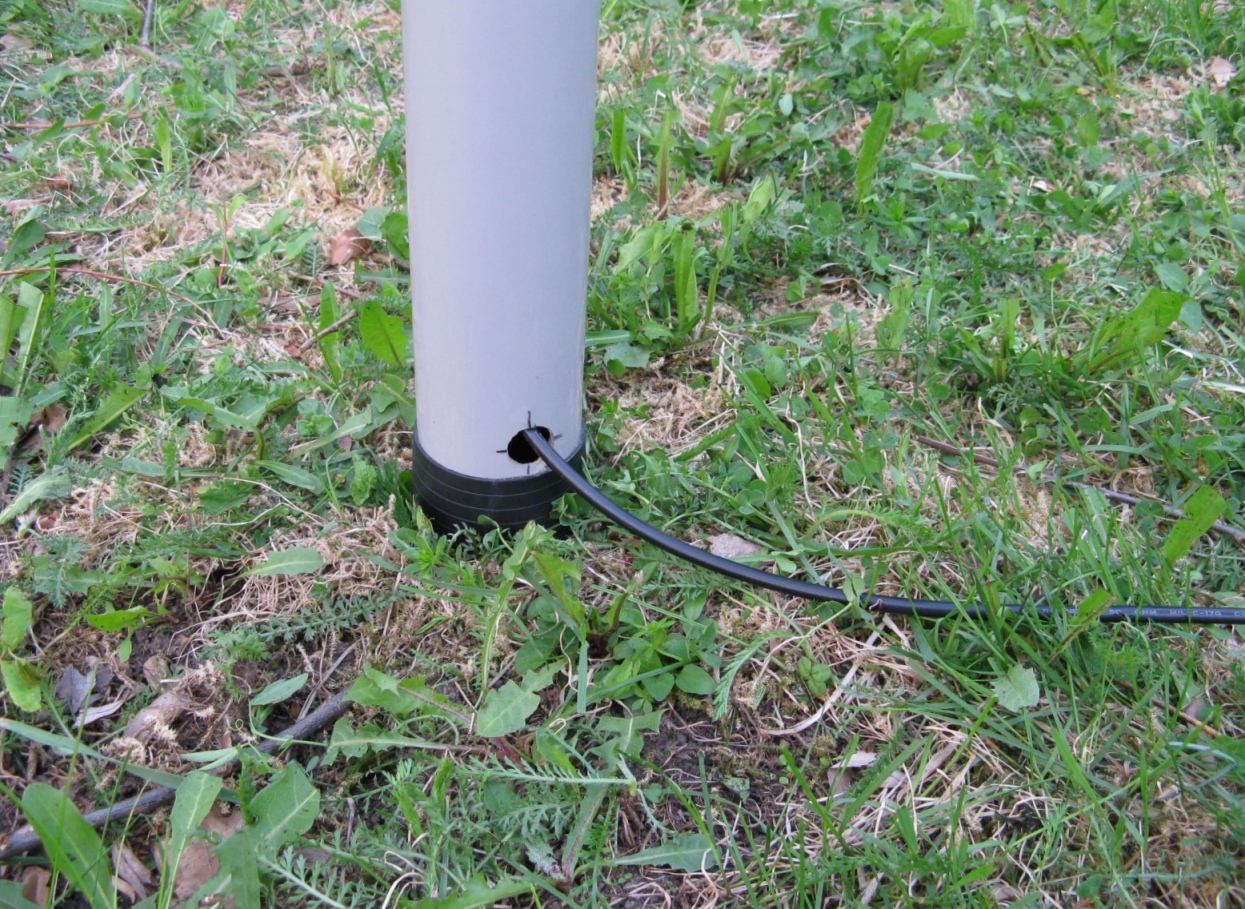

Hole for coaxial cable at bottom of the mast
|
Coax

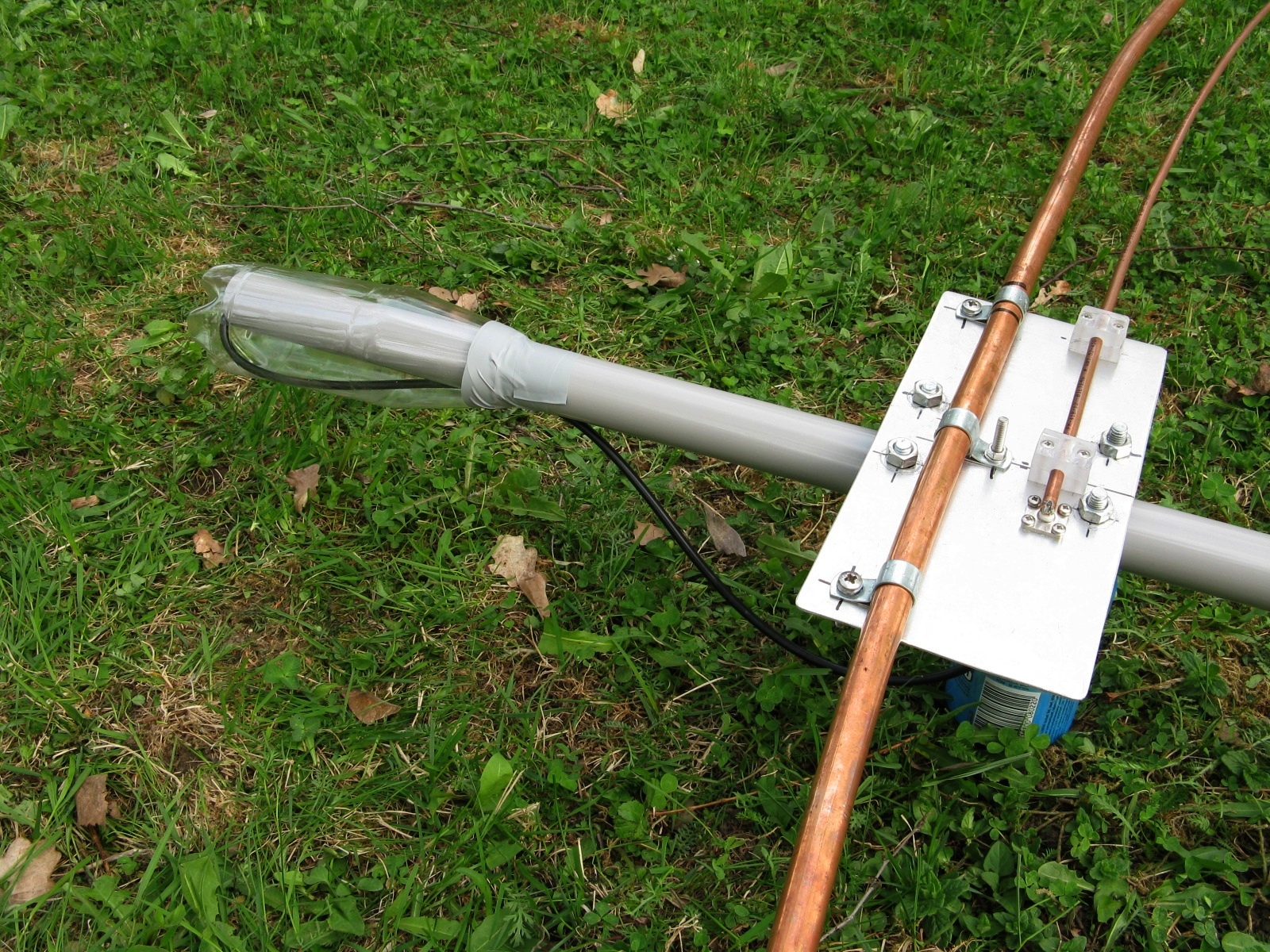

cable path via plastic bottle to feeding point
|
Polycarbonate

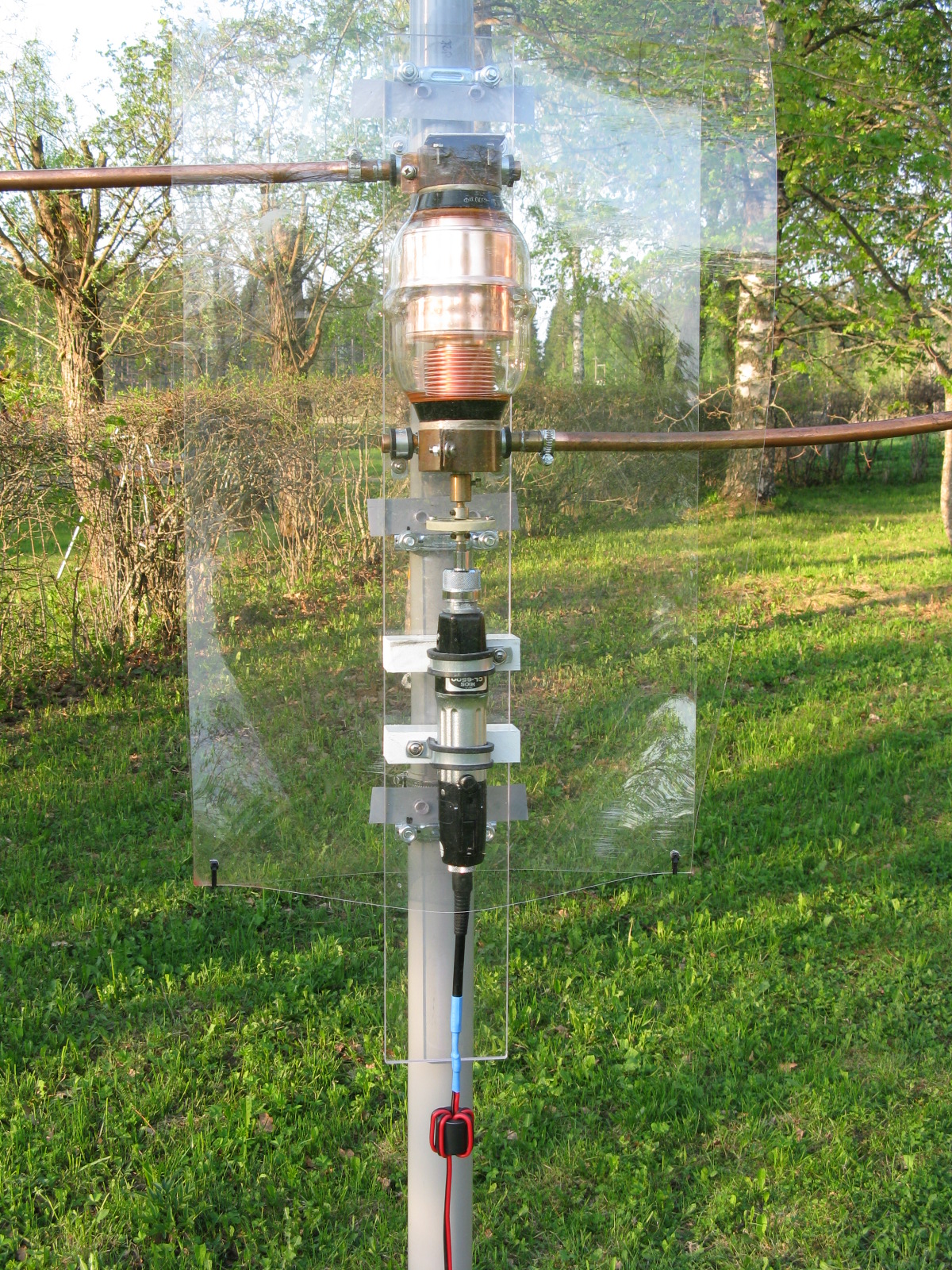

water protection over capacitor
|

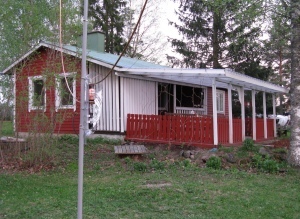

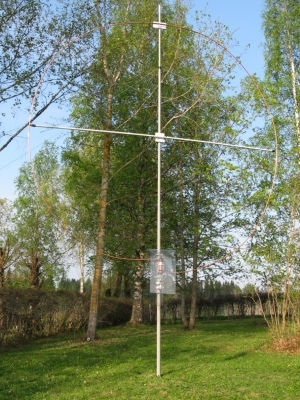

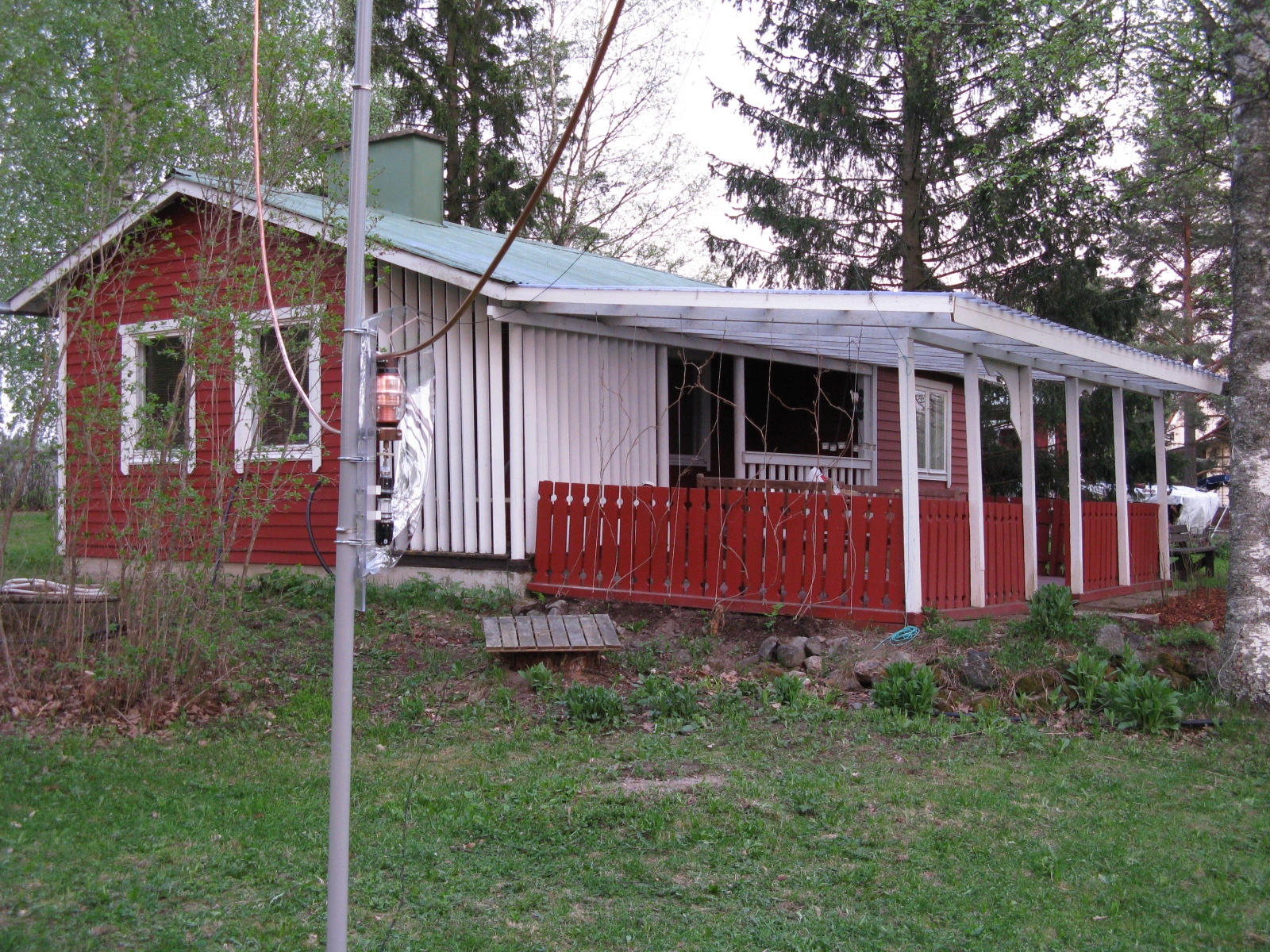

Summer QTH in May 2013 with good signal
|
|
|
|
|
Vacuum capacitor 500pF/10kV and tuning motor
Feeding point and gamma match spacing 50mm
Coax thru mast and plastic bottle as top rain cover
Horizontal 30mm Excel System
fiberglass support
Horizontal support end fixing to copper tube
HD Fiberglass mast from DX-wire. Three guy ropes
Telescope traction with stainless steel clamps
Magnetic loop ready for erect
Loop length 13.2m, diameter 4.2m. Copper D=15mm
Telescopic HD fiberglass mast height 6m
Common
mode RF choke in DC motor cable
Gamma match length abt 1m, Copper D=6mm
Hole for coaxial cable at bottom of the mast
Coax
cable path via plastic bottle to feeding point
Polycarbonate
water protection over capacitor
Summer QTH in May 2013 with good signal
