JUMA PA100-D digital model front view

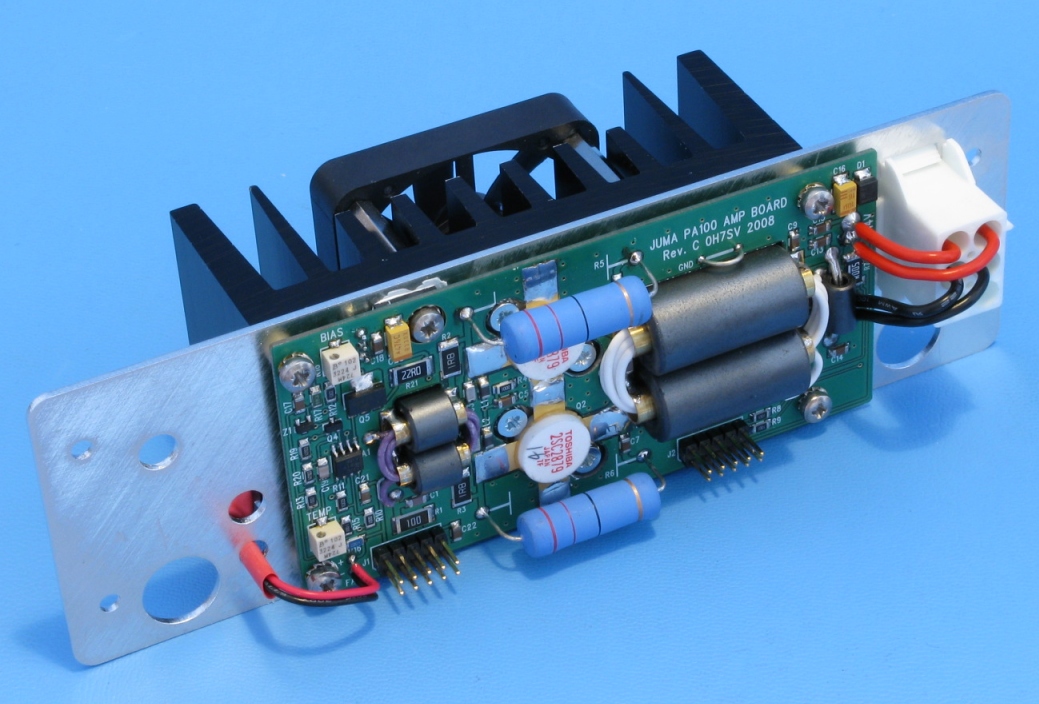

RF Amplifier Module

Schematics
Part list
PCB layout
Construction instructions
Description
Adjustments
Main Board Module
Schematics Rev A | Schematics Rev B
Part list Rev A | Part list Rev B
PCB layout Rev A | PCB Layout Rev B
Construction tips
Toroidal cores instructions
Description

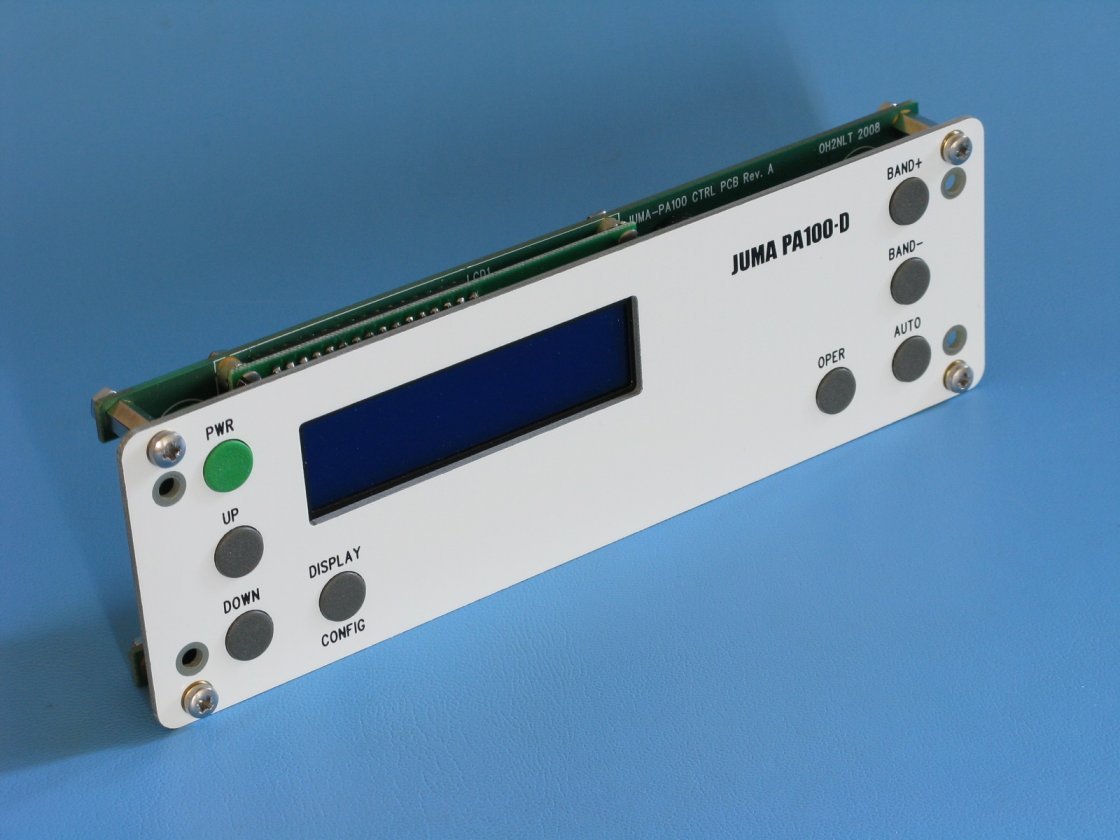

Digital Control Module
Schematics1 | Schematics2
Part list
PCB layout top | Layout bottom
Description
------------------------------------------------------------
Firmware V 1.04 (hex file)

Programming instructions
Software info for developers

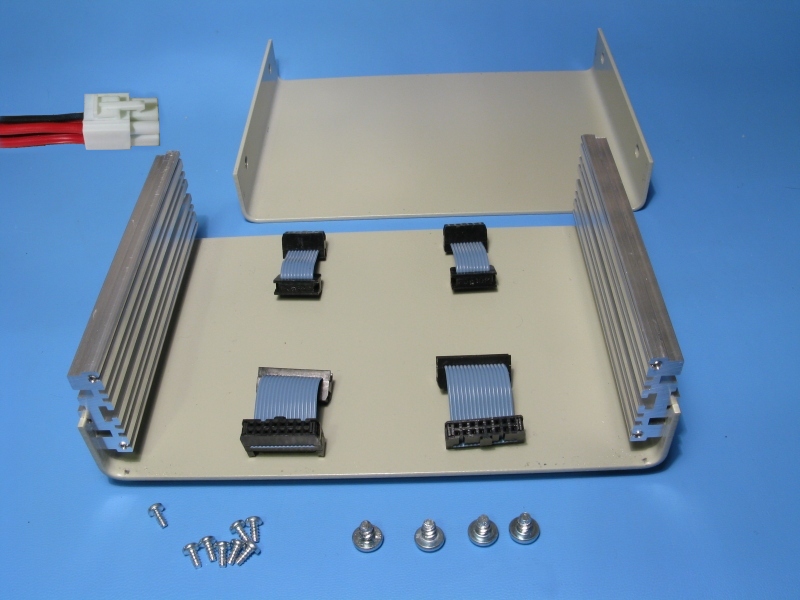

Electromechanical
Digital model construction
Part list
Flat cable dimension
Power supply cable connector

Rig interonnections
PA100 to exciter connections

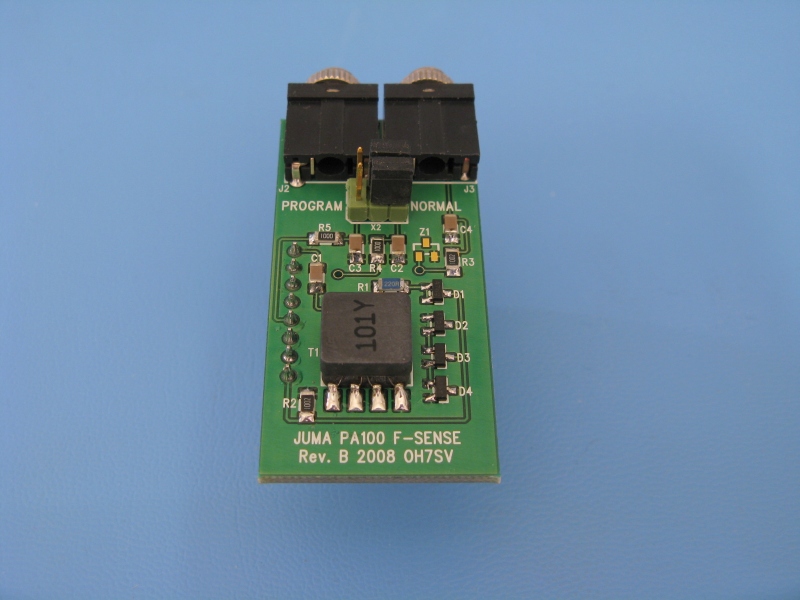

Frequency Sense Module
Schematics
Part list
PCB layout top | Layout bottom
Description


JUMA PA100-D front look

JUMA PA100-D rear look
Recommended modifications

IMD measurements

User HW and SW modifications

Link back to JUMA PA100 main page


JUMA PA100 analog model (Not in production)


JUMA PA100 analog model front view

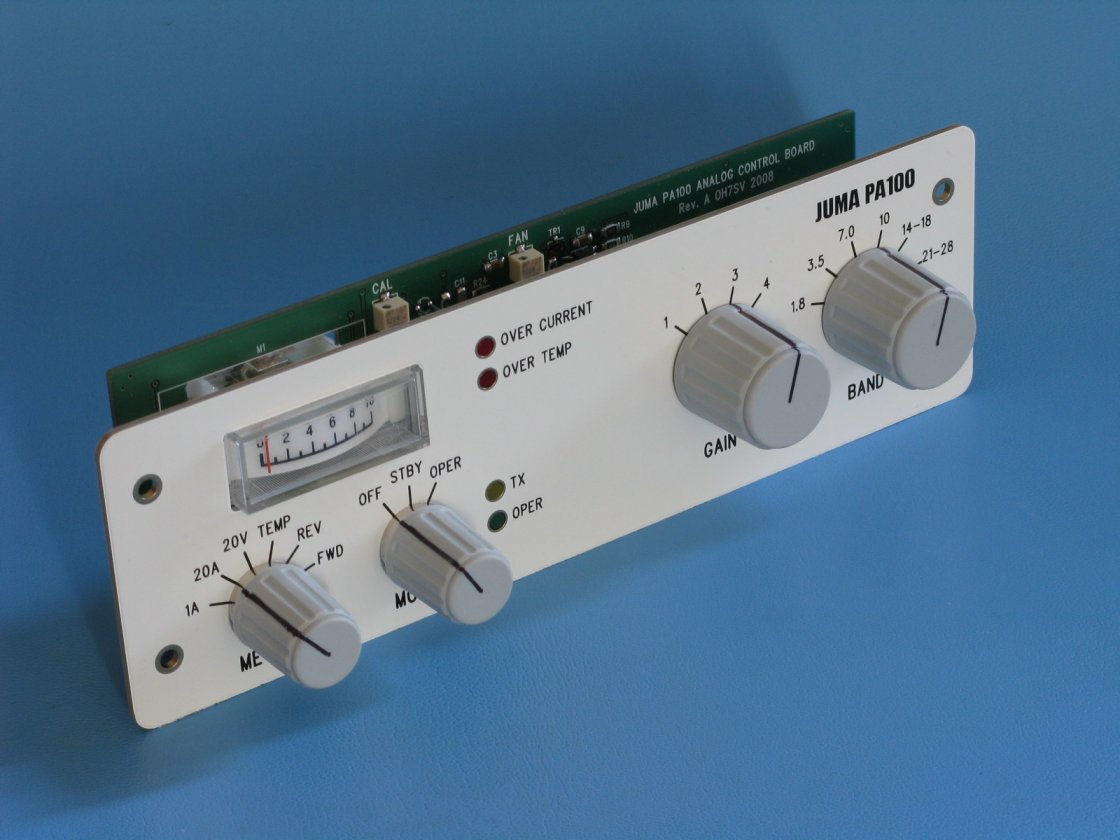

Analog Control Module
Schematics
Part list
PCB layout
Construction tips
Description

Adjustments


Analog model construction
