JUMA DFR1 Direction Finder Receiver

JUMA DRF1 is a stand alone direction finder receiver for 160 and 80 metes.
It is mainly designed for man made interference finding and it can be also used as a general receiver on the go.

Click DFR1 picture to enlarge

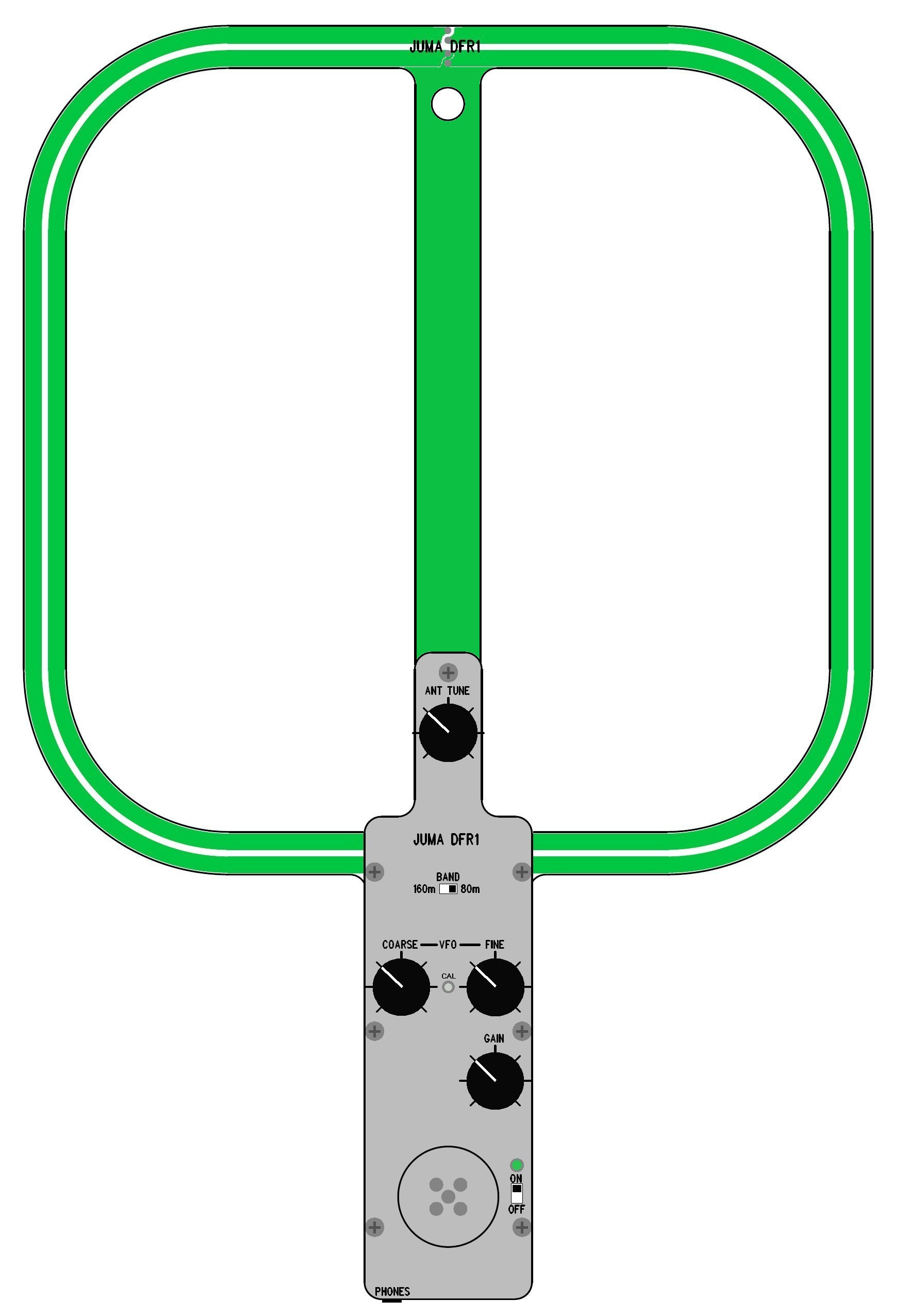

The loop dimension is 26cm x 26cm. Total height is abt 39cm.

The antenna is a four turn magnetic loop made of two layer FR4 PCB which provides good sensitivity.
The two band analog DSB receiver is implemented in the handle
with a 9V battery and a small speaker.
Best listening experience
can be achieved with phones plugged into the 3.5mm stereo jack.

The antenna is
mechanically very symmetrical and the coupling is electrically well balanced
which provides a deep minimum during direction finding.

The tuning of the magnetic loop and the frequency is using capacitance diodes.
The VFO control has coarse and fine tuning potentiometers.
The gain
adjust range is is wide to hear a low level interference as well as a strong signal.

The directivity is best for ground wave signals like near by man made interference sources.
The signals coming via ionosphere have many arriving angles which doesn't provide a reliable
