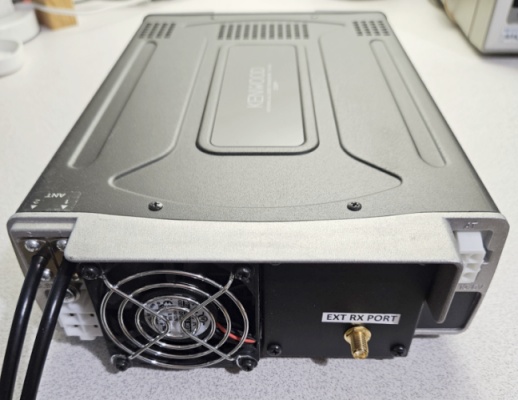

![]() SMA female connector installed in the rear panel
|

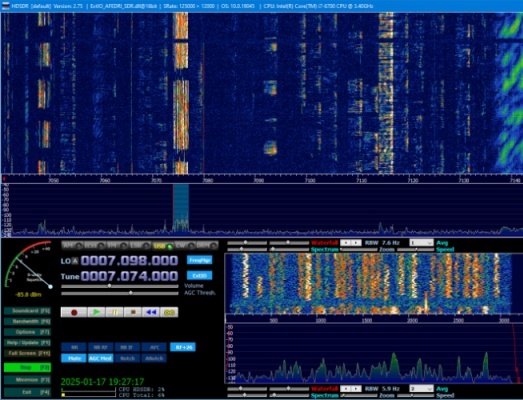

![]() Example of a SRD waterfall display in HDSDR software
|
![]() The add-on board
|

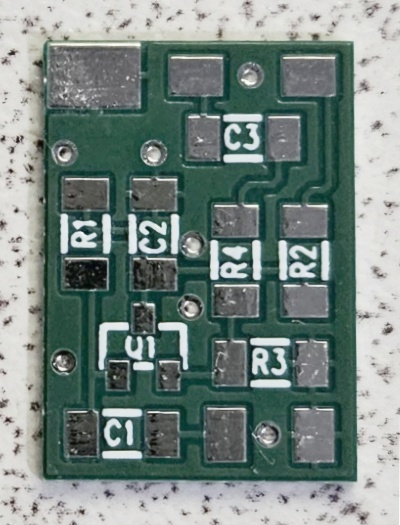

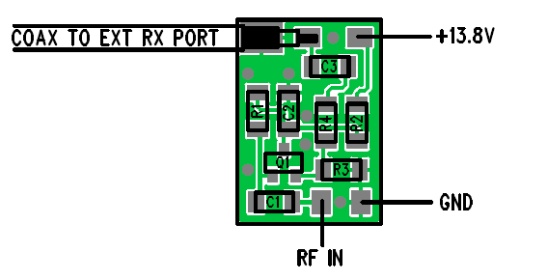

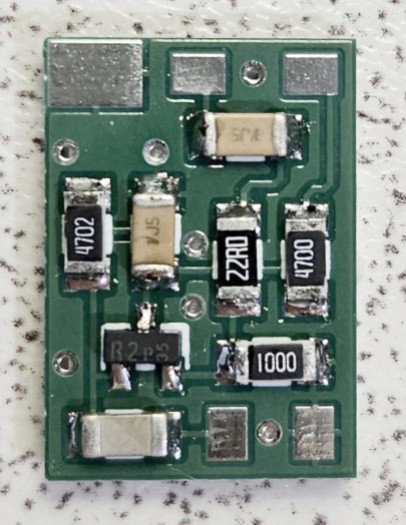

Small 12 x 17mm PCB
Parts assembled
|

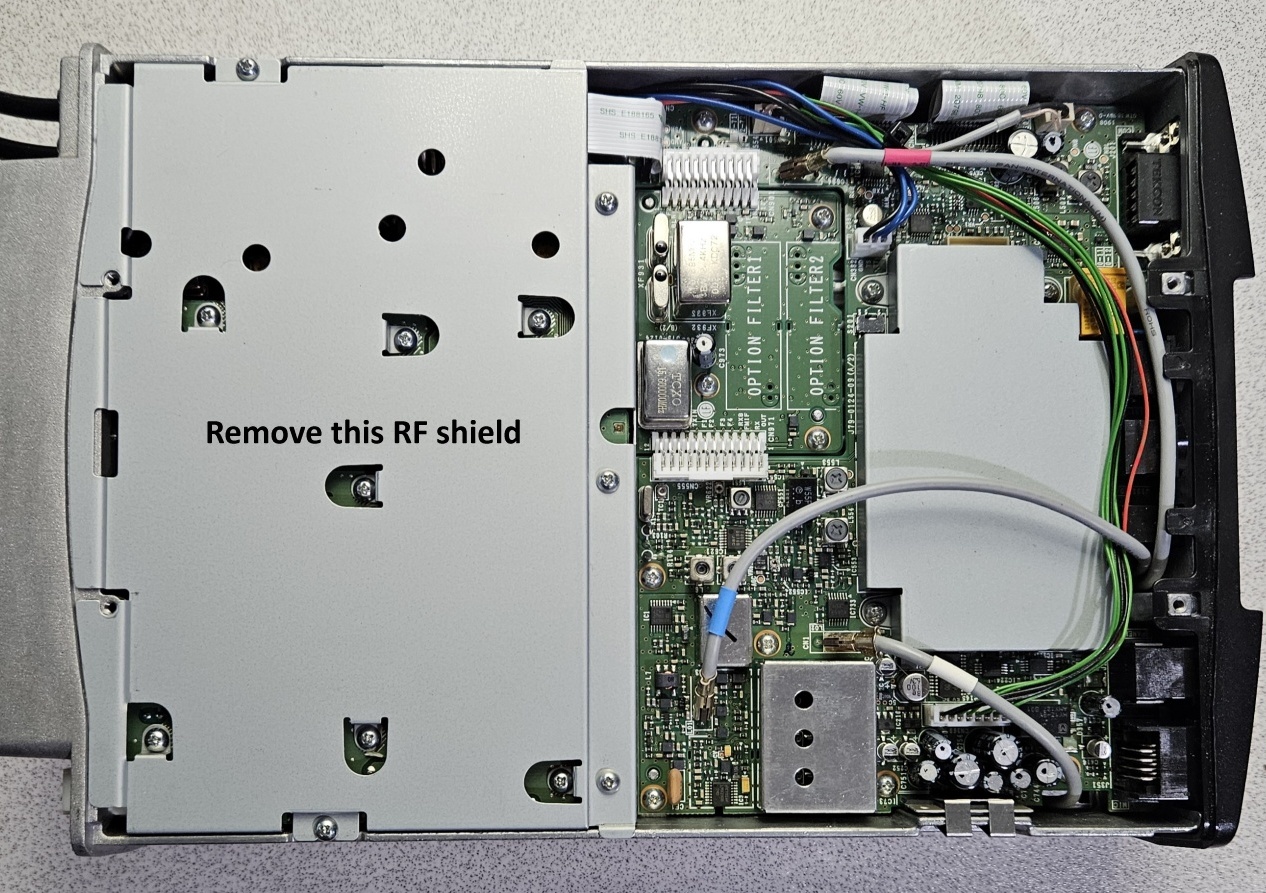

![]() Open the top cover and remove the RF shield, 12 screws
|

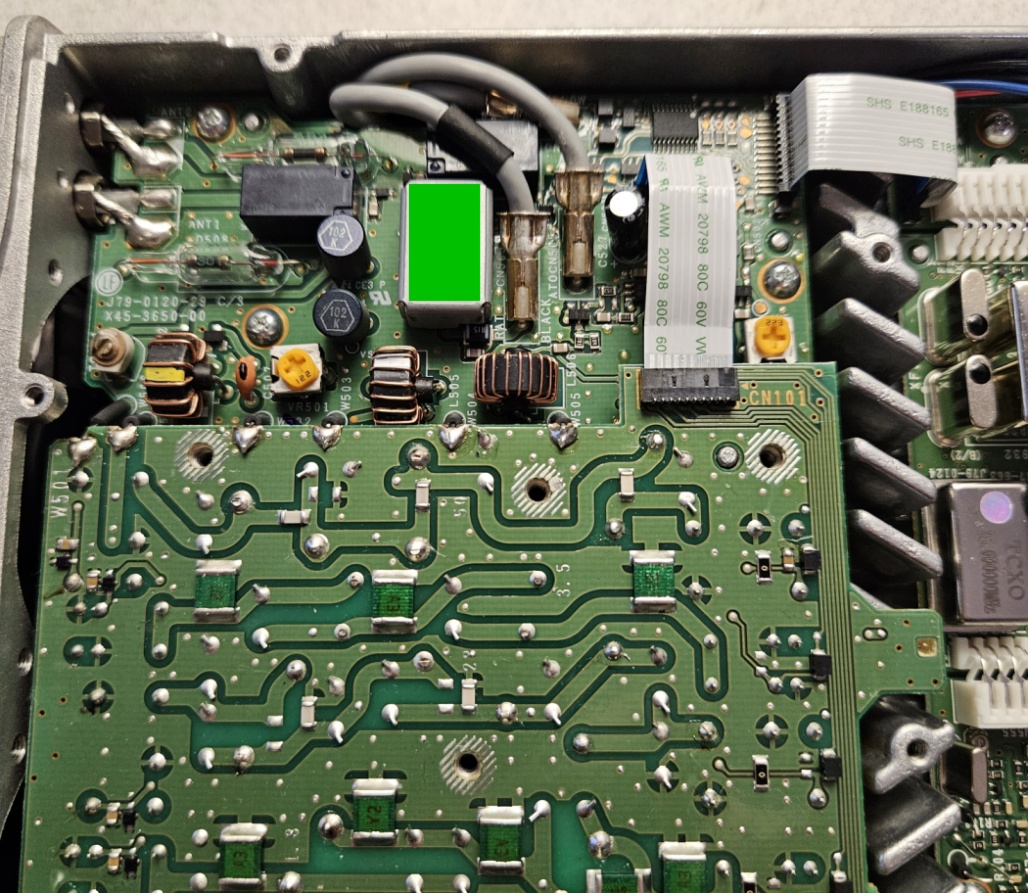

![]() Locate the metal relay cover marked green in this picture. SAT
model shown.
|

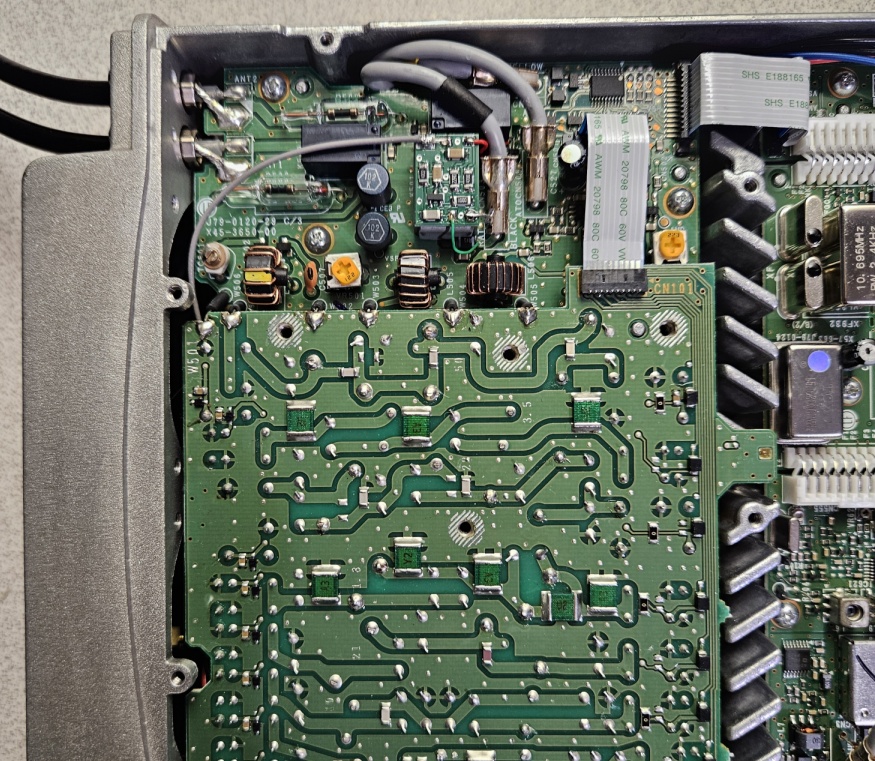

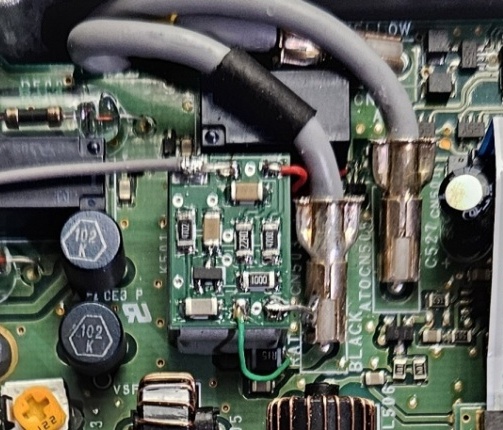

![]() Fix the PCB on the relay cover with contact
adhesive and make the wirings
|

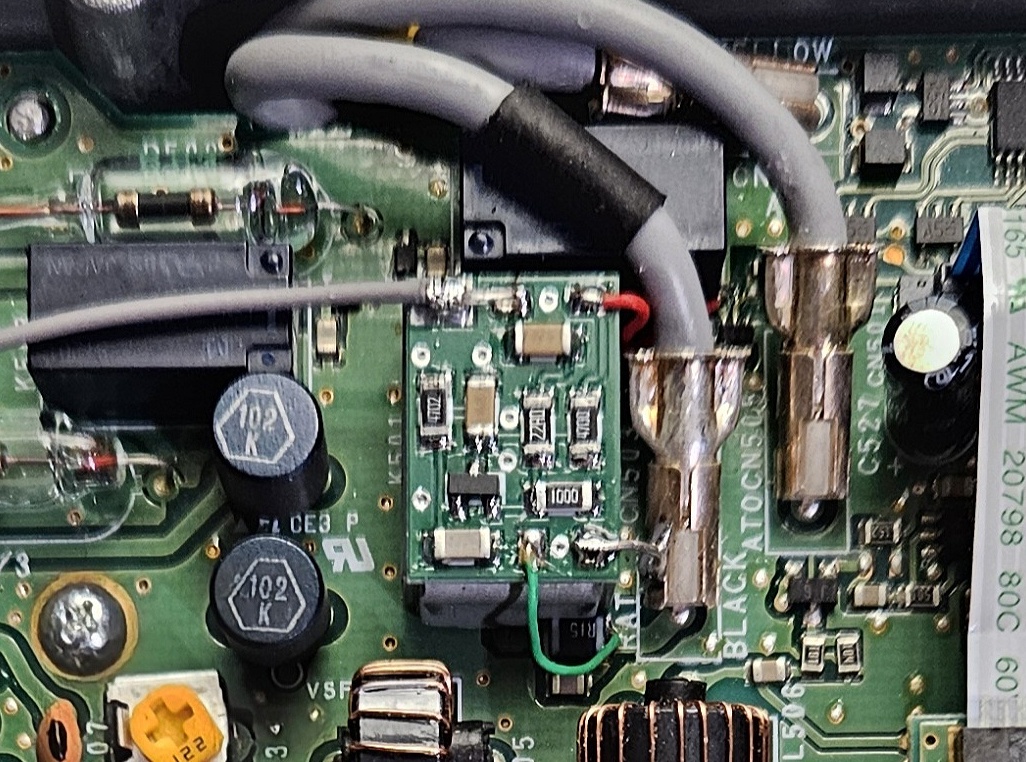

Green RF input, tinned wire GND, red +13.8V, grey coax out for
SMA connector.
|

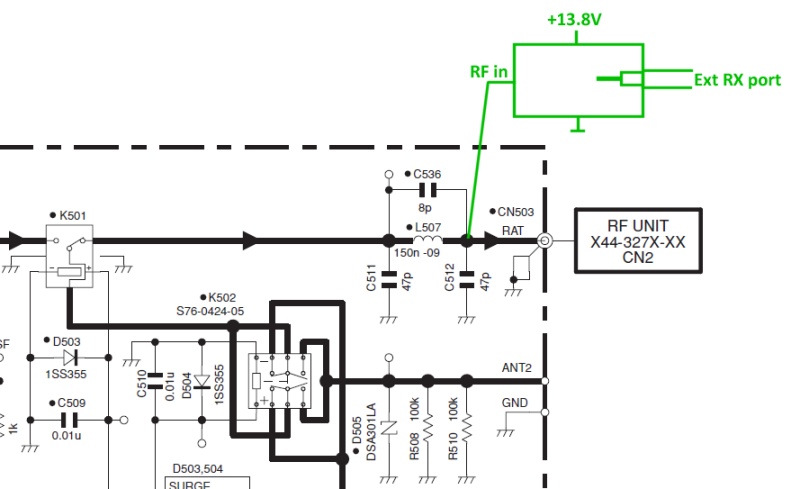

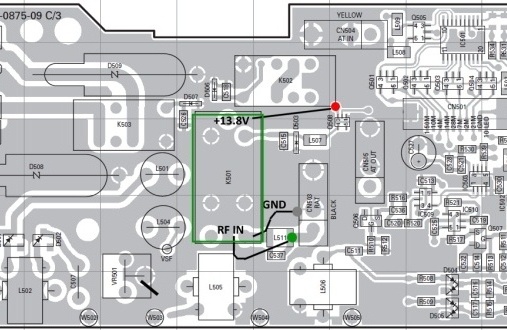

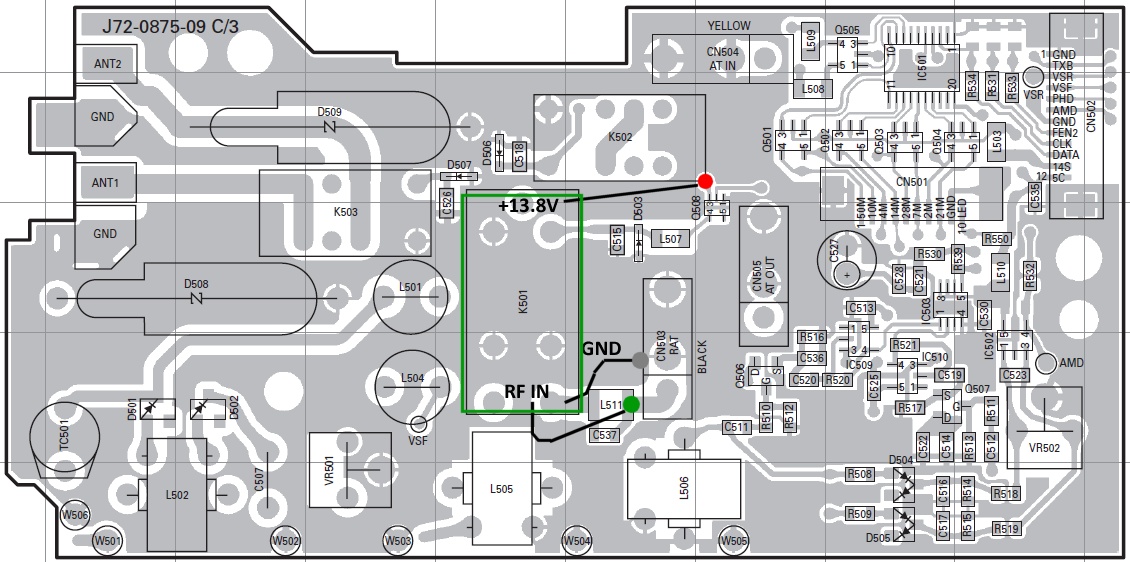

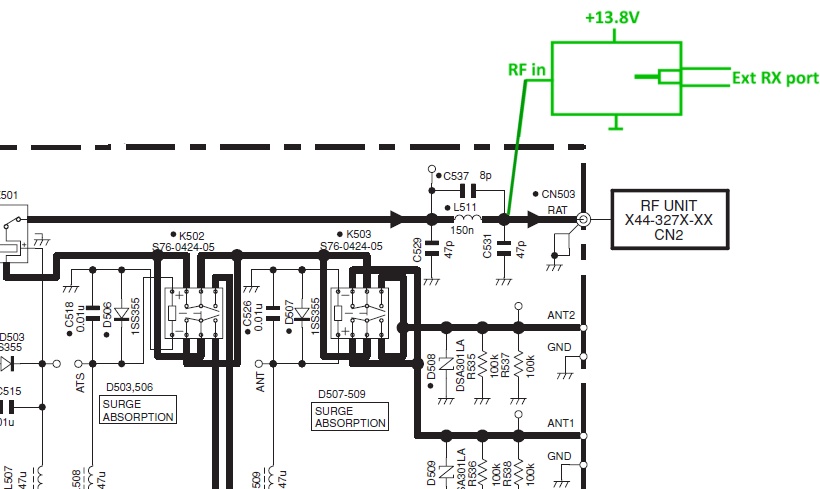

![]() TS-480 SAT schematics |
TS-480 SAT connection points
|

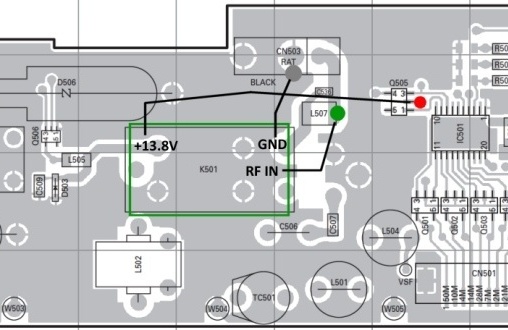

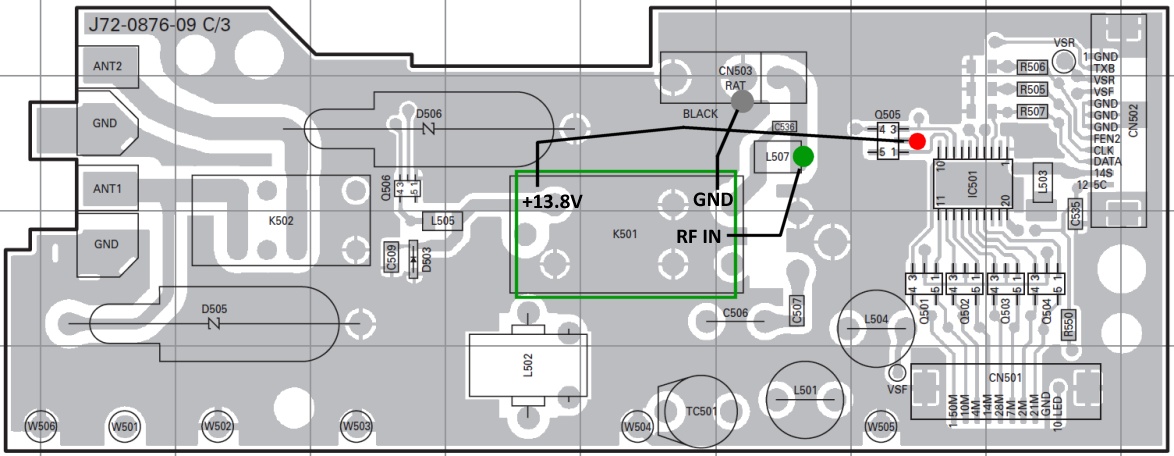

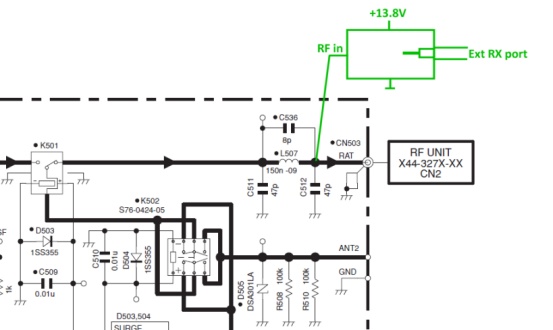

![]() TS-480 HX schematics |
TS-480 HX connection points
|

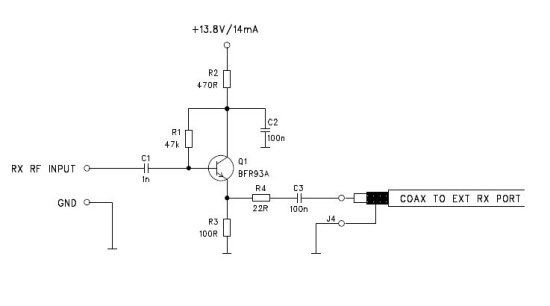

Update 2025-05-10![]() This circuit is prone to oscillation in GHz range. |

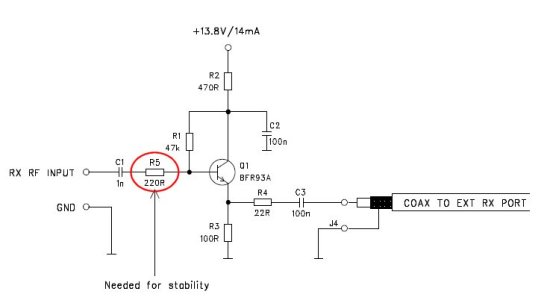

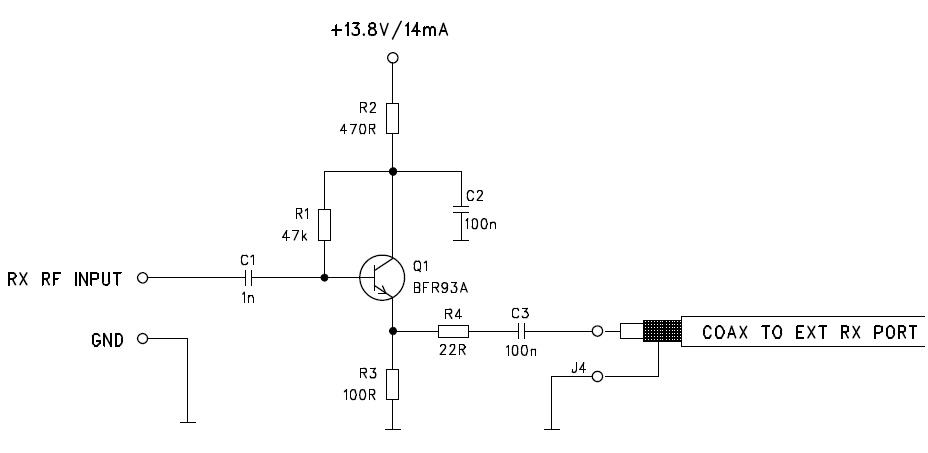

![]() This is stable. On PCB replace C1 with 220R resitor and add capacitor C1 in series with the input wire. |
Downloads - Schematics Ver C2 (Stable) - Schematics Ver C (Prone to oscillation) - Layout Ver C - BOM Ver C2 - Gerber files Ver C (Note PCB thickness 0.8mm) Update 2025-05-10 OH7SV (Modification to prevent oscillation) Back to OH7SV projects |
